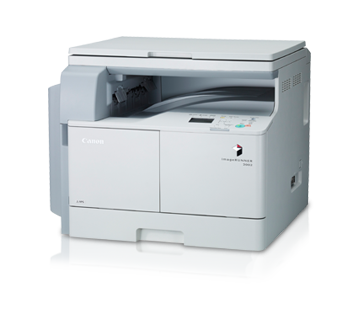

Ideal for small and medium-sized enterprises (SMEs), the imageRUNNER 2206N/2006N/2206 series deliver basic functionalities with enhanced smart capabilities. The imageRUNNER 2206N and 2006N offers security and connectivity functionalities such as secure print, send to email and connectivity to mobile applications. Enjoy better information security alongside greater connectivity and productivity.
GENERAL SPECIFICATIONS | |
Type |
A4 Monochrome Multifunctional Device (Reader/Printer Desktop) |
Copy/Print Speed |
|
A4 |
iR2206: 22ppm |
A3 |
iR2206: 11ppm |
Warm-Up Time |
13 secs or less |
Recovery from sleep mode |
4.3secs |
First Copy Time (A4) |
7.4 secs |
Memory |
iR2206: 256 MB |
Dimensions (W x D x H) |
iR2206: 622 x 589 x 502 |
Weight |
iR2206: Approximately 28.7 kg |
Installation Space (W × D) |
920 x 589 mm (when multi purpose tray is extended) |
Power Supply |
iR2206: 220 to 240 V AC, 50/60 Hz, 2.4 A |
Max Power Consumption |
|
Maximum Power Consumption: |
1.5 kWh |
When the machine is in the Sleep mode: |
2 W |
Toner Yield (A4, 6% coverage) |
Approx 10,200 sheets (A4, 6% coverage) |
Drum Yield |
iR2206: Approx 66,000 sheets |
PRINT SPECIFICATIONS | |
Print Resolution |
600 x 600 dpi |
Page Description Language(s) |
iR2206: UFRII LT (Standard) |
Print OS Compatibility |
Windows 10/8.1/7, Windows Server 2008/2008 R2/2012/2012 R2/ 2016, |
Interface |
|
Network |
iR2206: N/A |
Others (Local Print/Scan) |
USB2.0 x 1 |
Network Protocol |
iR2206: N/A |
COPY SPECIFICATIONS | |
Copy Resolution |
600 x 600 dpi |
Multiple Copies/Prints |
Up to 999 copies |
Magnification |
25% -400% (1% increment) |
SEND SPECIFICATIONS | |
Destination |
iR2206: N/A |
Scan Speed (Simplex, A4, 200dpi) |
iR2206: N/A |
Address Book |
iR2206: N/A |
SEND Resolution |
iR2206: N/A |
SEND File Format |
iR2206: N/A |
SCAN SPECIFICATIONS | |
Destination |
MF Scan Utility, application compatible with TWAIN/WIA |
Supported Protocol |
TCP/IP, USB |
Scan Speed (Simplex, A4, 300 dpi) |
BW: 23 sheets/minute |
Scan Resolution |
BW: 600 x 600 dpi |
Scan File Format |
TIFF/JPEG/PNG/PDF(Compact, Searchable)/PDF(Divided into Single-Page Files) |
Scan OS Compatibility |
Windows 10/8.1/7, Windows Server2008/2008 R2/2012/2012 R2/2016, |
SECURITY | |
Authentication |
iR2206: N/A |
Network |
iR2206: N/A |
Document |
iR2206: N/A |
PAPER HANDLING | |
Paper Sizes |
|
Cassette 1 |
A3,B4,A4R,A4,B5,B5R,A5R,India-LGL, FOOLSCAP |
Cassette 2 |
iR2206: N/A |
Multi Purpose Tray |
A3,B4,A4R,A4,B5,B5R,A5,A5R,India-LGL, |
Paper Input Capacity (Standard) |
|
Cassette 1 |
250 sheets (80 gsm) |
Multi Purpose Tray |
80 sheets (80 gsm) |
Paper Input Capacity (Optional) |
|
Cassette 2* |
iR2206: N/A |
Paper Specification |
|
Cassette |
Weight: 64 - 90 gsm |
Multi Purpose Tray |
Weight:60-128 gsm |
OPTIONAL ACCESSORIES | |
Duplex Automatic Document Feeder - AY1* |
|
Type |
iR2206: N/A |
Size of Originals |
iR2206: N/A |
Paper Weight |
iR2206: N/A |
Max. Number of Originals |
iR2206: N/A |
Scanning Speed (Simplex) |
|
Copying (A4 in BW at 600 dpi) |
iR2206: N/A |
Scanning (A4 in BW 300 dpi) |
iR2206: N/A |
Dimensions (W x D x H) |
iR2206: N/A |
Weight |
iR2206: N/A |
Cassette Feeding Module- AD1 |
|
Paper Sizes |
iR2206: N/A |
Paper Capacity |
iR2206: N/A |
Power Source |
iR2206: N/A |
Dimensions (W × D × H) |
iR2206: N/A |
Weight |
iR2206: N/A |
Other Optional Accessories and Supplies |
Duplex Unit-C1*, Platen Cover Type X*, FL Cassette-BB1*, Heater Kit-M2, Cassette Heater Unit-40, NPG-59 Drum Unit, NPG-59 Black Toner. * Available for iR2206N/2006N only. |
Ideal for small and medium-sized enterprises (SMEs), the imageRUNNER 2206N/2006N/2206 series deliver basic functionalities with enhanced smart capabilities. The imageRUNNER 2206N and 2006N offers security and connectivity functionalities such as secure print, send to email and connectivity to mobile applications. Enjoy better information security alongside greater connectivity and productivity.
GENERAL SPECIFICATIONS | |
Type |
A4 Monochrome Multifunctional Device (Reader/Printer Desktop) |
Copy/Print Speed |
|
A4 |
iR2206: 22ppm |
A3 |
iR2206: 11ppm |
Warm-Up Time |
13 secs or less |
Recovery from sleep mode |
4.3secs |
First Copy Time (A4) |
7.4 secs |
Memory |
iR2206: 256 MB |
Dimensions (W x D x H) |
iR2206: 622 x 589 x 502 |
Weight |
iR2206: Approximately 28.7 kg |
Installation Space (W × D) |
920 x 589 mm (when multi purpose tray is extended) |
Power Supply |
iR2206: 220 to 240 V AC, 50/60 Hz, 2.4 A |
Max Power Consumption |
|
Maximum Power Consumption: |
1.5 kWh |
When the machine is in the Sleep mode: |
2 W |
Toner Yield (A4, 6% coverage) |
Approx 10,200 sheets (A4, 6% coverage) |
Drum Yield |
iR2206: Approx 66,000 sheets |
PRINT SPECIFICATIONS | |
Print Resolution |
600 x 600 dpi |
Page Description Language(s) |
iR2206: UFRII LT (Standard) |
Print OS Compatibility |
Windows 10/8.1/7, Windows Server 2008/2008 R2/2012/2012 R2/ 2016, |
Interface |
|
Network |
iR2206: N/A |
Others (Local Print/Scan) |
USB2.0 x 1 |
Network Protocol |
iR2206: N/A |
COPY SPECIFICATIONS | |
Copy Resolution |
600 x 600 dpi |
Multiple Copies/Prints |
Up to 999 copies |
Magnification |
25% -400% (1% increment) |
SEND SPECIFICATIONS | |
Destination |
iR2206: N/A |
Scan Speed (Simplex, A4, 200dpi) |
iR2206: N/A |
Address Book |
iR2206: N/A |
SEND Resolution |
iR2206: N/A |
SEND File Format |
iR2206: N/A |
SCAN SPECIFICATIONS | |
Destination |
MF Scan Utility, application compatible with TWAIN/WIA |
Supported Protocol |
TCP/IP, USB |
Scan Speed (Simplex, A4, 300 dpi) |
BW: 23 sheets/minute |
Scan Resolution |
BW: 600 x 600 dpi |
Scan File Format |
TIFF/JPEG/PNG/PDF(Compact, Searchable)/PDF(Divided into Single-Page Files) |
Scan OS Compatibility |
Windows 10/8.1/7, Windows Server2008/2008 R2/2012/2012 R2/2016, |
SECURITY | |
Authentication |
iR2206: N/A |
Network |
iR2206: N/A |
Document |
iR2206: N/A |
PAPER HANDLING | |
Paper Sizes |
|
Cassette 1 |
A3,B4,A4R,A4,B5,B5R,A5R,India-LGL, FOOLSCAP |
Cassette 2 |
iR2206: N/A |
Multi Purpose Tray |
A3,B4,A4R,A4,B5,B5R,A5,A5R,India-LGL, |
Paper Input Capacity (Standard) |
|
Cassette 1 |
250 sheets (80 gsm) |
Multi Purpose Tray |
80 sheets (80 gsm) |
Paper Input Capacity (Optional) |
|
Cassette 2* |
iR2206: N/A |
Paper Specification |
|
Cassette |
Weight: 64 - 90 gsm |
Multi Purpose Tray |
Weight:60-128 gsm |
OPTIONAL ACCESSORIES | |
Duplex Automatic Document Feeder - AY1* |
|
Type |
iR2206: N/A |
Size of Originals |
iR2206: N/A |
Paper Weight |
iR2206: N/A |
Max. Number of Originals |
iR2206: N/A |
Scanning Speed (Simplex) |
|
Copying (A4 in BW at 600 dpi) |
iR2206: N/A |
Scanning (A4 in BW 300 dpi) |
iR2206: N/A |
Dimensions (W x D x H) |
iR2206: N/A |
Weight |
iR2206: N/A |
Cassette Feeding Module- AD1 |
|
Paper Sizes |
iR2206: N/A |
Paper Capacity |
iR2206: N/A |
Power Source |
iR2206: N/A |
Dimensions (W × D × H) |
iR2206: N/A |
Weight |
iR2206: N/A |
Other Optional Accessories and Supplies |
Duplex Unit-C1*, Platen Cover Type X*, FL Cassette-BB1*, Heater Kit-M2, Cassette Heater Unit-40, NPG-59 Drum Unit, NPG-59 Black Toner. * Available for iR2206N/2006N only. |

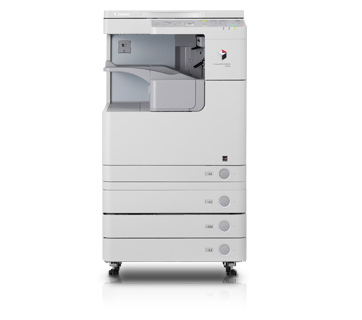

Running at 20ppm, the imageRUNNER 2520W offers a compact suite of workgroup functionalities. From network printing to built-in duplex, this multi-functional device is your choice for reliable, professional documents.
Multi-function network device:Device | imageRUNNER 2520W | |
Type | Desktop (Reader Combined + Inner Output) | |
Imaging System | Laser Dry Electrostatic Transfer System | |
Memory | Standard: | 256MB |
Maximum: | 512MB | |
Network Interface | Ethernet (100Base-TX / 10Base-T), USB 2.0 | |
Warm Up Time | 30 seconds maximum after powering ON
1 second maximum from the Sleep mode |
|
First Copy Output Time | 6.4 seconds or less | |
Multiple Copies | 1 to 999 sheets | |
Magnification | 25% to 400% (1% increment) | |
Maximum Original Size | Max. A3 / 11" x 17" | |
Duplex | Standard | |
Copy / Print Speed | 20ppm | |
Resolution | Reading: | 600 x 600dpi |
Writing: | 1200 x 1200dpi | |
Paper Sources (80gsm) | Paper Cassette: | Standard: 250 sheets paper capacity Maximum: 250 + 3 x 550 sheets paper capacity |
Stack Bypass: | Standard: 100 sheets paper capacity | |
Acceptable Paper Weights | Paper Cassette: | 64 to 90gsm |
Stack Bypass: | 64 to 128gsm | |
Main Unit Dimensions
(W x D x H) |
565 x 680 x 681mm (with the platen cover) 565 x 693 x 771mm (with the feeder) |
|
Weight | Approx. 50.5kg | |
Power Source | 220 - 240V AC, 50 / 60Hz | |
Maximum Power Consumption | Approx. 1.542KW | |
Toner Yield (6% Coverage) | Approx. 14,600 sheets (A4) | |
Drum Yield | Approx. 132,000 sheets (A4) | |
Print Specification | ||
PDL | Standard: | UFR II LT |
Optional: | PCL 5e/6, PS3 | |
Network OS | Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7, Mac OSX (10.4.9 or later) | |
Network ScanGear Specification | ||
Supported OS | Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7 | |
Resolution | BW: | Up to 600 x 600dpi |
CL: | Up to 300 x 300dpi |

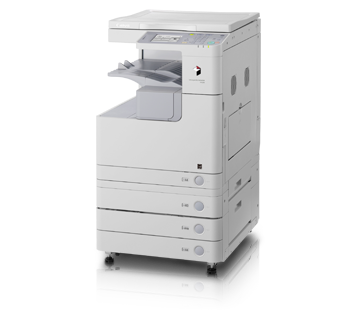

Running at 25ppm, the imageRUNNER 2525W offers a compact suite of workgroup functionalities. From network printing to built-in duplex, this multi-functional device is your choice for reliable, professional documents.
Multi-function network device:Device | imageRUNNER 2525W | |
Type | Desktop (Reader Combined + Inner Output) | |
Imaging System | Laser Dry Electrostatic Transfer System | |
Memory | Standard: | 256MB |
Maximum: | 512MB | |
Network Interface | Ethernet (100Base-TX / 10Base-T), USB 2.0 | |
Warm Up Time | 30 seconds maximum after powering ON
1 second maximum from the Sleep mode |
|
First Copy Output Time | 5.4 seconds or less | |
Multiple Copies | 1 to 999 sheets | |
Magnification | 25% to 400% (1% increment) | |
Maximum Original Size | Max. A3 / 11" x 17" | |
Duplex | Standard | |
Copy / Print Speed | 25ppm | |
Resolution | Reading: | 600 x 600dpi |
Writing: | 1200 x 1200dpi | |
Paper Sources (80gsm) | Paper Cassette: | Standard: 250 + 550 sheets paper capacity Maximum: 250 + 3 x 550 sheets paper capacity |
Stack Bypass: | Standard: 100 sheets paper capacity | |
Acceptable Paper Weights | Paper Cassette: | 64 to 90gsm |
Stack Bypass: | 64 to 128gsm | |
Main Unit Dimensions
(W x D x H) |
565 x 680 x 806mm (with the platen cover) 565 x 693 x 896mm (with the feeder) |
|
Weight | Approx. 67.7kg | |
Power Source | 220 - 240V AC, 50 / 60Hz | |
Maximum Power Consumption | Approx. 1.542KW | |
Toner Yield (6% Coverage) | Approx. 14,600 sheets (A4) | |
Drum Yield | Approx. 132,000 sheets (A4) | |
Print Specification | ||
PDL | Standard: | UFR II LT |
Optional: | PCL 5e/6, PS3 | |
Network OS | Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7, Mac OSX (10.4.9 or later) | |
Network ScanGear Specification | ||
Supported OS | Windows 2000 / XP / Server2003 / Vista / Server2008 / Win7 | |
Resolution | BW: | Up to 600 x 600dpi |
CL: | Up to 300 x 300dpi |

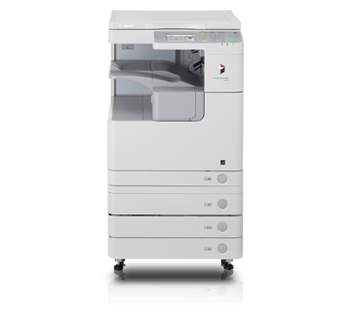

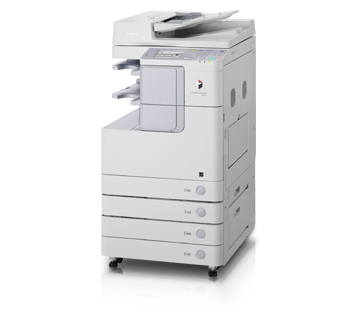

The imageRUNNER 2500W series offers a compact suite of workgroup functionalities. From network printing to built-in duplex, this multi-functional device is your choice for reliable, professional documents.
Device | imageRUNNER 2545W / 2535W / 2530W / 2525W / 2520W | |
Type | Desktop (Reader Combined + Inner Output) | |
Imaging System | Laser Dry Electrostatic Transfer System | |
Memory | Standard: | 256MB |
Maximum: | 512MB | |
Network Interface | Ethernet (100Base-TX / 10Base-T), USB 2.0 | |
Warm Up Time | 30 seconds maximum after powering ON | |
10 second maximum from the Sleep mode | ||
First Copy Output Time | imageRUNNER 2530W / 2525W / 2520W: 6.4 seconds or less | |
imageRUNNER 2545W / 2535W: 3.9 seconds or less | ||
Multiple Copies | 1 to 999 sheets | |
Magnification | 25% to 400% (1% increment) | |
Maximum Original Size | Max. A3 | |
Duplex | Standard | |
Copy / Print Speed | A4: | imageRUNNER 2545W: 45ppm imageRUNNER 2535W: 35ppm imageRUNNER 2530W: 30ppm imageRUNNER 2525W: 25ppm imageRUNNER 2520W: 20ppm |
A3: | imageRUNNER 2545W: 22ppm imageRUNNER 2535W: 22ppm imageRUNNER 2530W: 15ppm imageRUNNER 2525W: 15ppm imageRUNNER 2520W: 15ppm |
|
Resolution | Reading: | 600 x 600dpi |
Writing: | 1200 x 1200dpi | |
Paper Sources (80gsm) | Paper Cassette: | Standard: imageRUNNER 2520W: 250 sheets paper capacity imageRUNNER 2530W / 2525W: 250 + 550 sheets paper capacity imageRUNNER 2545W / 2535W: 2 x 550 sheets paper capacity |
Maximum: imageRUNNER 2520W: 250 + 3 x 550 sheets paper capacity imageRUNNER 2530W / 2525W: 250 +3 x 550 sheets paper capacity imageRUNNER 2545W / 2535W: 4 x 550 sheets paper capacity |
||
Stack Bypass: | Standard: 100 sheets paper capacity | |
Acceptable Paper Weights | Paper Cassette: | 64 to 90gsm |
Stack Bypass: | 64 to 128gsm | |
Main Unit Dimensions (W x D x H) |
imageRUNNER 2520W: 565 x 680 x 681mm (with the platen cover) 565 x 693 x 771mm (with the feeder) imageRUNNER 2530W / 2525W: 565 x 680 x 806mm (with the platen cover) 565 x 693 x 896mm (with the feeder) imageRUNNER 2545W / 2535W: 565 x 680 x 806mm (with the platen cover) 565 x 693 x 907mm (with the feeder) |
|
Weight | imageRUNNER 2520W: Approx. 50.5kg imageRUNNER 2530W / 2525W: Approx. 67.7kg imageRUNNER 2545W / 2535W: Approx 69.5kg |
|
Power Source | 220 - 240V AC, 50 / 60Hz |
|
Maximum Power Consumption | imageRUNNER 2530W / 2525W / 2520W: Approx 1.542kW imageRUNNER 2545W / 2535W: Approx 1.827kW |
|
Toner Yield (6% Coverage) | imageRUNNER 2530W / 2525W / 2520W: Approx. 14,600 sheets (A4) imageRUNNER 2545W / 2535W: Approx 19,400 sheets (A4) |
|
Drum Yield | imageRUNNER 2530W/2525W/2520W: Approx. 132,000 sheets (A4) imageRUNNER 2545W/2535W: Approx 140,000 sheets (A4) |
|
Print Specification | ||
PDL | Standard: | UFR II LT |
Optional: | PCL 6, PS3 | |
OS Compatibility | PCL | Windows 10 / 8.1 / 8 / 7 / Vista / Windows Server 2003 / Server 2003 R2 / Server 2008 |
Adobe PostScipt 3 | Windows 10 / 8.1 / 8 / 7 / Vista / Windows Server 2003 / Server 2003 R2 / Server 2008 / Server 2008 R2 / Server 2012 R2 / Mac OS X10.5 or later | |
UFR II | Windows 10 / 8.1 / 8 / 7 / Vista / Windows Server 2003 / Server 2003 R2 / Server 2008 / Server 2008 R2 / Server 2012 R2 / Mac OS X10.5 or later | |
Network ScanGear Specification | ||
Supported OS | Windows 8.1 / 8 / 7 / Vista / Windows Server 2003 / Server 2003 R2 / Server 2008 / Server 2008 R2 / Server 2012 R2 | |
Resolution | BW: | Up to 600 x 600dpi |
CL: | Up to 300 x 300dpi |

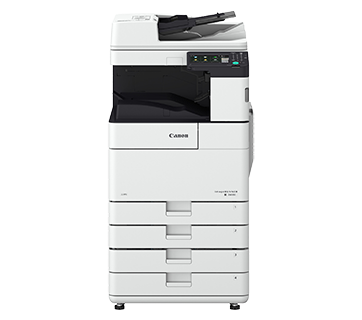

With personalised user workflows, advanced security features and cost control capabilities, the iR2600 is the ultimate document solution device designed for the modern office environment.
Machine Type |
A3 Monochrome Laser Multifunctional |
Core Functions |
Print, Copy, Scan, Send and Optional Fax |
Control Panel |
Standard: 17.78cm TFT LCD WVGA Colour Touch panel |
Memory |
Standard: 2.0GB RAM |
Paper Supply Capacity (A4, 80g/m²) |
Standard: 1 200 sheets |
Paper Output Capacity (A4, 80g/m²) |
Standard: 250 sheets |
Supported Media Sizes |
Upper Cassette 1: |
Supported Media Weights |
Paper Cassettes (1/2): 60 to 128g/m² |
Warm-up Time |
12s or less*1 |
Dimensions (W x D x H) |
iR 2645/2635: 586 x 709 x 926 mm (with DADF-BA1)*3 |
Installation Space (W x D) |
iR 2645/2635: 1363 x 1269 mm (with DADF-BA1)*4 |
Weight |
Standard: |
Print Speed (ppm) |
iR 2645: |
Print Resolution (dpi) |
1 200 x 1 200 |
Page Description Languages |
Standard: UFR II |
Fonts |
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*5 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*6 |
Operating System |
UFRII: Windows® 7/8.1/10/Server 2008 /Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.9 or later) |
Copy | |
Copy Speed (ppm) |
iR 2645: |
First-Copy-Out Time (A4) |
iR 2645: 3.9s or less |
Copy resolution (dpi) |
Reading: 600 x 600 |
Multiple Copies |
Up to 9 999 copies |
Copy Density |
Automatic or Manual (9 Levels) |
Magnification |
25% - 400% (1% Increments) |
Preset Reductions |
25%, 50%, 61%, 70%, 81%, 86% |
Preset Enlargements |
115%, 122%, 141%, 200%, 400% |
Scan | |
Selectable Type |
iR2645: Optional Document Feeder(DADF-BA1) or Platen Cover Type Y |
Document Feeder Paper Capacity (80g/m²) |
DADF-BA1: 100 Sheets |
Acceptable Originals and Weights |
Platen (DADF-BA1): Document Feeder media weight: DADF-BA1: 1-sided scanning: 38 to 128g/m² (BW), 64 to 128g/m² (CL)*7 2-sided scanning: 50 to 128g/m²(BW), 64 to 128g/m² (CL) DADF-AZ1: 1-sided scanning: 38 to 128g/m² (BW/CL) 2-sided scanning: 38 to 128g/m²(BW/CL)*8 |
Supported Media Sizes |
Platen: scanning size: 297.0 x 431.8 mm |
Scan Speed (ipm: BW/CL; A4) |
DADF-BA1: |
Scan Resolution (dpi) |
Copy: 600 x 600 |
Pull Scan Specifications |
Colour Network ScanGear2. For both TWAIN and WIA |
Scan Method |
Send functionality available on all models |
Send | |
Destination |
E-mail/Internet FAX (SMTP), SMB, FTP, WebDAV, Super G3 FAX (Optional) |
Address Book |
LDAP (2,000)/Local (1,600)/Speed dial (200) |
Send Resolution (dpi) |
Push: 600 x 600 |
Communication Protocol |
File: FTP (TCP/IP), SMB (TCP/IP), WebDAV |
File Format |
Standard: TIFF (MMR), JPEG*9, PDF (Compact, PDF A/1-b, Encrypted), XPS (Compact), PDF/XPS (Device Signature) |
Fax | |
Optional / Standard |
Optional on all models |
Number of Connection Lines |
1 |
Modem Speed |
Super G3: 33.6 kbps |
Compression Method |
MH, MR, MMR, JBIG |
Resolution (dpi) |
400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine/Photo), 200 x 100 (Normal) |
Sending / Recording Size |
A3, A4, A4R, A5*10, A5R*10, B4, B5*11, B5R*10 |
FAX / Memory |
Up to 30 000 pages |
Speed Dials |
200 |
Group Dials / Destinations |
199 dials |
Sequential Broadcast | 256 addresses |
Memory Backup |
Yes |
Store | |
Memory Media |
Standard: USB Memory |
Security | |
Authentication |
Standard: uniFLOW Online Express, User Authentication, Department ID Authentication, Access Management System, Picture Login |
Network |
Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME |
Document |
Standard: Secure Print, Encrypted PDF, Encrypted Secure Print, Device signature |
Environmental | |
Operating Environment |
Temperature: 10 to 30 ºC (50 to 86 ºF) |
Power Source |
220-240 V , 50/60 Hz , 5.2 Amp |
Power Consumption |
Maximum: 1500W |
Consumables | |
Toner Cartridge/s |
NPG-84 Toner Black |
Toner (Estimated Yield @ 6% Coverage) |
Black: 30 000 impressions (A4) |
Paper Supply Options | |
CASSETTE FEEDING UNIT-AN1 |
Paper Capacity: 550 sheets x 2 (80g/m²) |
ENVELOPE FEEDER ATTACHMENT-D1 |
Attaches to the 2nd paper drawer for easy envelope feeding. Holds up to 50 envelopes. |
Output Options | |
INNER 2WAY TRAY-L1 |
Allows the separation of copies, prints and faxes. Adds a second internal output tray to give a combined output capacity of 350 sheets (upper tray 100 sheets/lower tray 250 sheets). |
INNER FINISHER-J1 (Internal) |
Number of Trays: 2 |
Hardware Accessories | |
Card Readers |
COPY CARD READER-F1 - Magnetic physical card access system. (Integrates with Department ID, not for use with uniFLOW) |
Others |
UTILITY TRAY-B1 - Additional tray to hold an external USB keyboard |
System and Controller options | |
Print Accessories |
PCL INTERNATIONAL FONT SET-A1 - Adds PCL support for Andalé Mono WT J/K/S/T (Japanese/Korean/Simplified Chinese/Traditional Chinese). |
Send Options |
Universal Send Digital User Signature Kit-C1 |
Barcode Printing |
BARCODE PRINTING KIT-D1 - Provides the ability to print 1D and 2D barcodes on output using jet caps technology. |
System Accessories |
COPY CONTROL INTERFACE KIT-D1: Allows connection (CCVI I/F) between 3rd party copy control terminal and Canon’s iR-ADV range for cost recovery use. |
FAX Accessories |
SUPER G3 FAX BOARD-AV2 |
Other Options | |
Accessibility Accessories |
ADF ACCESS HANDLE-A1 - Attaches to the document feeder, making access easier for seated users. |
Staple Cartridge |
STAPLE-P1 - For stapling (2 x 5 000 N ) |

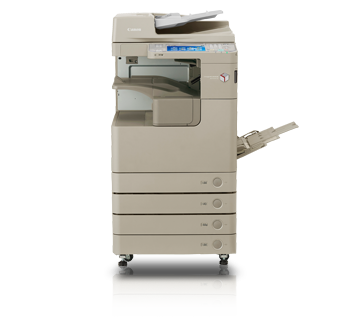

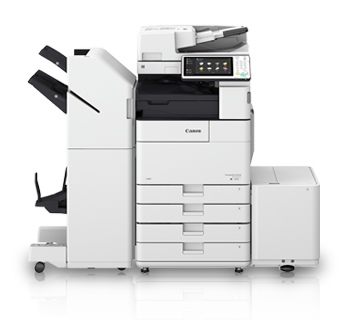

Suitable for both medium and large enterprises, the imageRUNNER ADVANCE (iR-ADV) 4500 delivers consistent and reliable performance in a compact, space-saving design. With its intelligent features and customisable options, the iR-ADV 4500 is the solution to your business needs.
Type | Monochrome Laser Multifunctional | |
Core Function | Print, Copy, Scan, Send, Store and Optional Fax | |
Processor | Canon Dual Custom Processor (Shared) | |
Control Panel | Standard: 10.1 inch TFT LCD WSVGA Colour Touch Panel | |
Memory | Standard: 3.0GB RAM | |
Hard Disk Drive | Standard: | 250GB |
Maximum: | 1TB | |
Mirroring Hard Disk Drive | Optional 250GB, 1TB | |
Interface Connection | Network | Standard: 1000Base-T / 100Base-TX / 10Base-T, Wireless LAN (IEEE 802.11 b/g/n) |
Optional: NFC, Bluetooth | ||
Others | Standard: USB 2.0 x2 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device) | |
Optional: Serial Interface, Copy Control Interface | ||
Paper Capacity (A4, 80gsm) | Standard: | 1,180 Sheets |
Maximum: | 6,330 Sheets | |
Paper Sources (A4, 80gsm) | Standard: | Two 550-sheet Paper Cassettes 80-sheet Multi-purpose tray |
Optional: | CASSETTE FEEDING UNIT-AN1: Two 550-sheet Paper Cassettes HIGH CAPACITY CASSETTE FEEDING UNIT-B1: 2,450-sheet Paper deck PAPER DECK UNIT-F1: 2,700-sheet Paper deck |
|
Maximum: | 6,330 Sheets | |
Paper Output Capacity (A4,80gsm) | Standard: | 250 sheets |
Maximum: | 3,350 sheets (With STAPLE FINISHER-Y1 / BOOKLET FINISHER-Y1) |
|
Finishing Capabilities | Standard: Collate, Group | |
With Inner Finisher Option: Offset, Collate, Group, Staple, *Hole Punch, ECO-Staple, Staple-On Demand | ||
With External Finisher Option: Offset, Collate, Group, Staple, *Hole Punch, **Saddle Stitch, , ECO-Staple, Staple-On Demand
*Require Inner Hole Puncher option **Require BOOKLET FINISHER-Y1 |
||
Supported Media Types | Cassettes (1/2): | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper |
Multi Purpose Tray | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper, *Transparency, Tracing paper, Label, Bond paper, Envelope | |
Cassette Feeding Unit-AN1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
High Capacity Cassette Feeding Unit-B1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
Paper Deck Unit-F1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
*Use only A4 transparencies made especially for multi-functional device | ||
Supported Media Sizes | Cassette 1: | Standard size: B4, A4, A4R, B5, B5R, A5R |
Custom Size: Min. 139.7 x 182mm up to 297 x 390mm | ||
Cassette 2: | Standard size: A3, B4, A4, A4R, B5, B5R, A5R, Foolscap, India Legal, F4A | |
Custom size: Min. 139.7 x 182mm up to 297 x 431.8mm | ||
CASSETTE FEEDING UNIT-AN1 (3/4): | Standard size: A3, B4, A4, A4R, B5, B5R, A5R, Foolscap, India Legal, F4A | |
Custom size: Min. 139.7 x 182mm up to 297 x 431.8mm | ||
High Capacity Cassette Feeding Unit-B1: | A4 | |
Paper Deck Unit-F1: | A4, B5 | |
Multi-Purpose Tray: | Standard size: A3, B4, A4, A4R, B5, B5R, A5, A5R, Foolscap, India Legal, F4A | |
Custom Size: Min. 98 x 148mm up to 297 x 431.8mm | ||
Supported Media Weights | CASSETTES: | 60 to 128g/m2 |
MULTI-PURPOSE TRAY: | 52 to 220g/m2 | |
DUPLEX: | 60 to 105g/m2 | |
Warm-up Time | From Power On*: | 24 seconds or Less *Time between device power-on and when the start key is enabled (Force Hold Print) |
From Deep Sleep Mode: | 10 seconds or Less | |
Quick Startup Mode: | 4 seconds or less** ** If |
|
Dimensions (W x D x H) | With SINGLE PASS DADF-A1: | 587 x 740 x 945mm |
With DADF-AV1: | 587 x 750 x 926mm | |
Installation Space (W x D) | Basic: | 889 x 1171.9mm (with SINGLE PASS DADF-A1 + Multi-purpose tray open + Cassette Drawers open)
889 x 1181.9mm (with DADF-AV1 + Multi-purpose tray open + Cassette Drawers open) |
Fully Configured: | 1,811 x 1,269.9mm (with SINGLE PASS DADF-A1 + PAPER DECK UNIT-F1 + BOOKLET FINISHER-Y1 + Cassette Drawers open) 1,811 mm x 1,279.9 mm (with DADF-AV1 + PAPER DECK UNIT-F1 + BOOKLET FINISHER-Y1 + Cassette Drawers open) |
|
Weight (Including the toner bottle) | Approx. 86.6kg (with SINGLE PASS DADF-A1) | |
Approx. 81.3kg (with DADF-AV1) | ||
Print Specification | ||
Printing Method | Monochrome laser beam printing | |
Print Speed | iR-ADV 4551 | 51ppm (A4) 25ppm (A3) |
iR-ADV 4545 | 45ppm (A4) 22ppm (A3) | |
iR-ADV 4535 | 35ppm (A4) 22ppm (A3) | |
iR-ADV 4525 | 25ppm (A4) 15ppm (A3) | |
Print Resolution | Up to 1,200 x 1,200 dpi | |
Page Description Languages | UFR II (Standard), PCL6 (Option), Adobe PS 3 (Option) | |
Double Sided Printing | Automatic (Standard) | |
Direct Print | Direct printing available from USB memory key, Advanced box, Remote UI and Web Access* Supported File Types: PDF, TIFF, JPEG, XPS *Only PDF print from websites is supported. |
|
Fonts | PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts,
Andalé Mono WT J / K / S / T* (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts** PS fonts: 136 Roman *Requires optional PCL INTERNATIONAL FONT SET-A1 **Require optional BARCODE PRINTING KIT-D1 |
|
Operating System | UFRII: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10, MAC OS X (10.6.8 or later) |
PCL: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 | |
PS: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10, MAC OS X (10.6.8 or later) | |
PPD: | MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 | |
Copy Specification | ||
Copy Speed (BW / Colour) | iR-ADV 4551 | 51ppm (A4) 25ppm (A3) |
iR-ADV 4545 | 45ppm (A4) 22ppm (A3) | |
iR-ADV 4535 | 35ppm (A4) 22ppm (A3) | |
iR-ADV 4525 | 25ppm (A4) 15ppm (A3) | |
First-Copy-Out Time* (A4) * 20ºC to 30ºC Environment |
iR-ADV 4551: |
Approx. 3.7 seconds or less |
iR-ADV 4545 / 4535: | Approx. 3.8 seconds or less | |
iR-ADV 4525: | Approx. 5.2 seconds or less | |
Copy Resolution | Reading: |
600 x 600dpi |
Printing: | Up to 1,200 x 1,200dpi | |
Multiple Copies | Up to 999 copies | |
Copy Exposure | Automatic or Manual (10 Levels) | |
Magnification | 25% - 400% (1% Increments) | |
Preset Reductions | 25%, 50%, 70%, 81%, 86% | |
Preset Enlargements | 115%, 122%, 141%, 200%, 400% | |
Scan Specification | ||
Type | Single-pass Duplexing Automatic Document Feeder or Duplexing Automatic Document Feeder | |
Document Feeder Paper Capacity | SINGLE PASS (SP) DADF-A1: | 150 Sheets (80g/m2) |
DADF-AV1: | 100 Sheets (80g/m2) | |
Document Feeder Supported Media Sizes | SP DADF-A1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6R |
DADF-AV1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6 | |
Document Feeder Supported Media Weights | SP DADF-A1: | |
Single-sided scanning: | 38 to 157g/m2 (BW) | |
64 to 157g/m2 (CL) | ||
Double-sided scanning | 50 to 157g/m2(BW) | |
64 to 157g/m2 (CL) | ||
DADF-AV1: | ||
Single-sided scanning: | 38 to 128g/m2 (BW) | |
64 to 128g/m2 (CL) | ||
Double-sided scanning | 50 to 128g/m2 (BW) | |
64 to 128g/m2 (CL) | ||
Pull Scan Spec | Colour Network ScanGear2. For both Twain and WIA
Supported OS: Windows Vista / 7 / 8 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 |
|
Scan Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | |
Platen Acceptable Originals | Platen: Sheet, Book, 3-Dimensional Objects [Up to 2kg]
Feeder size: A3, B4, A4, A4R, B5, B5R, A5, A5R |
|
Scan Speed (A4) | SP DADF-A1: | |
1-sided Scanning (BW): | 80ipm (300dpi) / 80 ipm (600dpi) | |
1-sided Scanning (Colour): | 80ipm (300dpi) / 60ipm (600dpi) | |
2-sided Scanning (BW): | 160ipm (300dpi) / 150ipm (600dpi) | |
2-sided Scanning (Colour): | 160ipm (300dpi) / 80ipm (600dpi) | |
DADF-AV1: | ||
1-sided Scanning (BW): | 70ipm (300dpi) / 51ipm (600 dpi) | |
1-sided Scanning (Colour): | 70ipm (300dpi) / 51ipm (600 dpi) | |
2-sided Scanning (BW): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
2-sided Scanning (Colour): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
Double sided scanning | 2-sided to 2-sided (Automatic) | |
Send Specification | ||
Optional / standard | Standard on all models | |
Destination | E-mail / Internet FAX (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 FAX (Optional), IP Fax (Optional) | |
Colour Mode | Automatic-Colour Select (Full Colour / Grayscale), Automatic-Colour Select (Full Colour / Black-and-White), Full colour, Grayscale, and Black-and-White | |
Address Book | LDAP (2,000) / Local (1,600) / One-touch (200) | |
Send Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | |
Communication Protocol | File: | FTP, SMB v3.0, WebDAV |
E-mail / I-Fax: | SMTP, POP3, I-Fax (Simple, Full) | |
File Format | Standard: | JPEG, TIFF, PDF / XPS (Compact), PDF (PDF / A-1b, Optimize for Web, Apply Policy |
Optional: | PDF (Trace & Smooth, Encrypted), PDF / XPS (Searchable, Digital Signature), Office Open XML (PowerPoint, Word) | |
Fax Specification | ||
Optional / Standard | Optional on all models | |
Maximum Number of Connection Lines | 4 | |
Modem Speed | Super G3: 33.6kbps / G3: 14.4kbps | |
Compression Method | MH, MR, MMR, JBIG | |
Resolution | 400 x 400dpi, 200 x 400dpi, 200 x 200dpi, 200 x 100dpi | |
Sending / Recording Size | A5 and A5R* to A3
* Sent as A4 |
|
FAX Memory | Up to 30,000 pages | |
Speed Dials | Max. 200 | |
Group Dials / Destinations | Max. 199 dials | |
Sequential Broadcast | Max. 256 addresses | |
Memory Backup | Yes | |
Store Specification | ||
Mail Box (Number supported) | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes 30,000 Maximum Pages Stored | |
Advanced Box | Communication Protocol: | SMB or WebDAV |
Supported Client PC: | Windows (Windows Vista / 7 / 8 / 8.1 / 10) | |
Concurrent Connections (Max.): | SMB: 64 | |
WebDAV: 3 (Active Sessions) | ||
Advanced Box Available Disc Space | Approx. 16GB (Standard HDD) | |
Approx. 480GB (1TB HDD) | ||
Memory Media | Standard: USB Memory | |
Security Specification | ||
Authentication | Standard: | Picture Login Authentication, User Authentication, Department ID Authentication, Device and Function Level Login, Access Management System |
Optional: | My Print Anywhere secure print (Requires uniFLOW) | |
Data | Standard: | Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Hard Disk Drive Encryption (FIPS140-2 Validated), Mail Box Password Protection |
Optional: | Hard Disk Drive Mirroring, Hard Disk Drive removal, IEEE 2600.2 Common Criteria Certification. | |
Network | Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP | |
Document | Standard: | Secure Print, Force Hold Print |
Optional: | Encrypted PDF, Encrypted Secure Print, User and Device signatures, Secure Watermarks, Document Scan lock | |
Environmental Specifications | ||
Operating Environment | Temperature: 10 to 30°C | |
Humidity: 20 to 80 % RH (no condensation) | ||
Power Requirements | iR-ADV 4551: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.6A |
iR-ADV 4545: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.2A | |
iR-ADV 4535: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.2A | |
iR-ADV 4525: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 4.3A | |
Power Consumption | Maximum: | 1.5kW |
Standby: | Approx. 37W* | |
Sleep mode: | Approx. 0.9W ** | |
* Reference Value ** 0.9W sleep mode is not available in all circumstances due to certain settings. |
||
Consumables | ||
Toner Yield (Estimated Yield @6% Coverage) | NPG-73 Toner: | 42,100 pages |
Drum Yield (Estimated Yield @6% Coverage) | iR-ADV 4551: | 338,000 pages |
iR-ADV 4545: | 318,000 pages | |
iR-ADV 4535: | 280,000 pages | |
iR-ADV 4525: | 314,000 pages |
Suitable for both medium and large enterprises, the imageRUNNER ADVANCE (iR-ADV) 4500 delivers consistent and reliable performance in a compact, space-saving design. With its intelligent features and customisable options, the iR-ADV 4500 is the solution to your business needs.
Type | Monochrome Laser Multifunctional | |
Core Function | Print, Copy, Scan, Send, Store and Optional Fax | |
Processor | Canon Dual Custom Processor (Shared) | |
Control Panel | Standard: 10.1 inch TFT LCD WSVGA Colour Touch Panel | |
Memory | Standard: 3.0GB RAM | |
Hard Disk Drive | Standard: | 250GB |
Maximum: | 1TB | |
Mirroring Hard Disk Drive | Optional 250GB, 1TB | |
Interface Connection | Network | Standard: 1000Base-T / 100Base-TX / 10Base-T, Wireless LAN (IEEE 802.11 b/g/n) |
Optional: NFC, Bluetooth | ||
Others | Standard: USB 2.0 x2 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device) | |
Optional: Serial Interface, Copy Control Interface | ||
Paper Capacity (A4, 80gsm) | Standard: | 1,180 Sheets |
Maximum: | 6,330 Sheets | |
Paper Sources (A4, 80gsm) | Standard: | Two 550-sheet Paper Cassettes 80-sheet Multi-purpose tray |
Optional: | CASSETTE FEEDING UNIT-AN1: Two 550-sheet Paper Cassettes HIGH CAPACITY CASSETTE FEEDING UNIT-B1: 2,450-sheet Paper deck PAPER DECK UNIT-F1: 2,700-sheet Paper deck |
|
Maximum: | 6,330 Sheets | |
Paper Output Capacity (A4,80gsm) | Standard: | 250 sheets |
Maximum: | 3,350 sheets (With STAPLE FINISHER-Y1 / BOOKLET FINISHER-Y1) |
|
Finishing Capabilities | Standard: Collate, Group | |
With Inner Finisher Option: Offset, Collate, Group, Staple, *Hole Punch, ECO-Staple, Staple-On Demand | ||
With External Finisher Option: Offset, Collate, Group, Staple, *Hole Punch, **Saddle Stitch, , ECO-Staple, Staple-On Demand
*Require Inner Hole Puncher option **Require BOOKLET FINISHER-Y1 |
||
Supported Media Types | Cassettes (1/2): | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper |
Multi Purpose Tray | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper, *Transparency, Tracing paper, Label, Bond paper, Envelope | |
Cassette Feeding Unit-AN1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
High Capacity Cassette Feeding Unit-B1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
Paper Deck Unit-F1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
*Use only A4 transparencies made especially for multi-functional device | ||
Supported Media Sizes | Cassette 1: | Standard size: B4, A4, A4R, B5, B5R, A5R |
Custom Size: Min. 139.7 x 182mm up to 297 x 390mm | ||
Cassette 2: | Standard size: A3, B4, A4, A4R, B5, B5R, A5R, Foolscap, India Legal, F4A | |
Custom size: Min. 139.7 x 182mm up to 297 x 431.8mm | ||
CASSETTE FEEDING UNIT-AN1 (3/4): | Standard size: A3, B4, A4, A4R, B5, B5R, A5R, Foolscap, India Legal, F4A | |
Custom size: Min. 139.7 x 182mm up to 297 x 431.8mm | ||
High Capacity Cassette Feeding Unit-B1: | A4 | |
Paper Deck Unit-F1: | A4, B5 | |
Multi-Purpose Tray: | Standard size: A3, B4, A4, A4R, B5, B5R, A5, A5R, Foolscap, India Legal, F4A | |
Custom Size: Min. 98 x 148mm up to 297 x 431.8mm | ||
Supported Media Weights | CASSETTES: | 60 to 128g/m2 |
MULTI-PURPOSE TRAY: | 52 to 220g/m2 | |
DUPLEX: | 60 to 105g/m2 | |
Warm-up Time | From Power On*: | 24 seconds or Less *Time between device power-on and when the start key is enabled (Force Hold Print) |
From Deep Sleep Mode: | 10 seconds or Less | |
Quick Startup Mode: | 4 seconds or less** ** If |
|
Dimensions (W x D x H) | With SINGLE PASS DADF-A1: | 587 x 740 x 945mm |
With DADF-AV1: | 587 x 750 x 926mm | |
Installation Space (W x D) | Basic: | 889 x 1171.9mm (with SINGLE PASS DADF-A1 + Multi-purpose tray open + Cassette Drawers open)
889 x 1181.9mm (with DADF-AV1 + Multi-purpose tray open + Cassette Drawers open) |
Fully Configured: | 1,811 x 1,269.9mm (with SINGLE PASS DADF-A1 + PAPER DECK UNIT-F1 + BOOKLET FINISHER-Y1 + Cassette Drawers open) 1,811 mm x 1,279.9 mm (with DADF-AV1 + PAPER DECK UNIT-F1 + BOOKLET FINISHER-Y1 + Cassette Drawers open) |
|
Weight (Including the toner bottle) | Approx. 86.6kg (with SINGLE PASS DADF-A1) | |
Approx. 81.3kg (with DADF-AV1) | ||
Print Specification | ||
Printing Method | Monochrome laser beam printing | |
Print Speed | iR-ADV 4551 | 51ppm (A4) 25ppm (A3) |
iR-ADV 4545 | 45ppm (A4) 22ppm (A3) | |
iR-ADV 4535 | 35ppm (A4) 22ppm (A3) | |
iR-ADV 4525 | 25ppm (A4) 15ppm (A3) | |
Print Resolution | Up to 1,200 x 1,200 dpi | |
Page Description Languages | UFR II (Standard), PCL6 (Option), Adobe PS 3 (Option) | |
Double Sided Printing | Automatic (Standard) | |
Direct Print | Direct printing available from USB memory key, Advanced box, Remote UI and Web Access* Supported File Types: PDF, TIFF, JPEG, XPS *Only PDF print from websites is supported. |
|
Fonts | PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts,
Andalé Mono WT J / K / S / T* (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts** PS fonts: 136 Roman *Requires optional PCL INTERNATIONAL FONT SET-A1 **Require optional BARCODE PRINTING KIT-D1 |
|
Operating System | UFRII: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10, MAC OS X (10.6.8 or later) |
PCL: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 | |
PS: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10, MAC OS X (10.6.8 or later) | |
PPD: | MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 | |
Copy Specification | ||
Copy Speed (BW / Colour) | iR-ADV 4551 | 51ppm (A4) 25ppm (A3) |
iR-ADV 4545 | 45ppm (A4) 22ppm (A3) | |
iR-ADV 4535 | 35ppm (A4) 22ppm (A3) | |
iR-ADV 4525 | 25ppm (A4) 15ppm (A3) | |
First-Copy-Out Time* (A4) * 20ºC to 30ºC Environment |
iR-ADV 4551: |
Approx. 3.7 seconds or less |
iR-ADV 4545 / 4535: | Approx. 3.8 seconds or less | |
iR-ADV 4525: | Approx. 5.2 seconds or less | |
Copy Resolution | Reading: |
600 x 600dpi |
Printing: | Up to 1,200 x 1,200dpi | |
Multiple Copies | Up to 999 copies | |
Copy Exposure | Automatic or Manual (10 Levels) | |
Magnification | 25% - 400% (1% Increments) | |
Preset Reductions | 25%, 50%, 70%, 81%, 86% | |
Preset Enlargements | 115%, 122%, 141%, 200%, 400% | |
Scan Specification | ||
Type | Single-pass Duplexing Automatic Document Feeder or Duplexing Automatic Document Feeder | |
Document Feeder Paper Capacity | SINGLE PASS (SP) DADF-A1: | 150 Sheets (80g/m2) |
DADF-AV1: | 100 Sheets (80g/m2) | |
Document Feeder Supported Media Sizes | SP DADF-A1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6R |
DADF-AV1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6 | |
Document Feeder Supported Media Weights | SP DADF-A1: | |
Single-sided scanning: | 38 to 157g/m2 (BW) | |
64 to 157g/m2 (CL) | ||
Double-sided scanning | 50 to 157g/m2(BW) | |
64 to 157g/m2 (CL) | ||
DADF-AV1: | ||
Single-sided scanning: | 38 to 128g/m2 (BW) | |
64 to 128g/m2 (CL) | ||
Double-sided scanning | 50 to 128g/m2 (BW) | |
64 to 128g/m2 (CL) | ||
Pull Scan Spec | Colour Network ScanGear2. For both Twain and WIA
Supported OS: Windows Vista / 7 / 8 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 |
|
Scan Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | |
Platen Acceptable Originals | Platen: Sheet, Book, 3-Dimensional Objects [Up to 2kg]
Feeder size: A3, B4, A4, A4R, B5, B5R, A5, A5R |
|
Scan Speed (A4) | SP DADF-A1: | |
1-sided Scanning (BW): | 80ipm (300dpi) / 80 ipm (600dpi) | |
1-sided Scanning (Colour): | 80ipm (300dpi) / 60ipm (600dpi) | |
2-sided Scanning (BW): | 160ipm (300dpi) / 150ipm (600dpi) | |
2-sided Scanning (Colour): | 160ipm (300dpi) / 80ipm (600dpi) | |
DADF-AV1: | ||
1-sided Scanning (BW): | 70ipm (300dpi) / 51ipm (600 dpi) | |
1-sided Scanning (Colour): | 70ipm (300dpi) / 51ipm (600 dpi) | |
2-sided Scanning (BW): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
2-sided Scanning (Colour): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
Double sided scanning | 2-sided to 2-sided (Automatic) | |
Send Specification | ||
Optional / standard | Standard on all models | |
Destination | E-mail / Internet FAX (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 FAX (Optional), IP Fax (Optional) | |
Colour Mode | Automatic-Colour Select (Full Colour / Grayscale), Automatic-Colour Select (Full Colour / Black-and-White), Full colour, Grayscale, and Black-and-White | |
Address Book | LDAP (2,000) / Local (1,600) / One-touch (200) | |
Send Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | |
Communication Protocol | File: | FTP, SMB v3.0, WebDAV |
E-mail / I-Fax: | SMTP, POP3, I-Fax (Simple, Full) | |
File Format | Standard: | JPEG, TIFF, PDF / XPS (Compact), PDF (PDF / A-1b, Optimize for Web, Apply Policy |
Optional: | PDF (Trace & Smooth, Encrypted), PDF / XPS (Searchable, Digital Signature), Office Open XML (PowerPoint, Word) | |
Fax Specification | ||
Optional / Standard | Optional on all models | |
Maximum Number of Connection Lines | 4 | |
Modem Speed | Super G3: 33.6kbps / G3: 14.4kbps | |
Compression Method | MH, MR, MMR, JBIG | |
Resolution | 400 x 400dpi, 200 x 400dpi, 200 x 200dpi, 200 x 100dpi | |
Sending / Recording Size | A5 and A5R* to A3
* Sent as A4 |
|
FAX Memory | Up to 30,000 pages | |
Speed Dials | Max. 200 | |
Group Dials / Destinations | Max. 199 dials | |
Sequential Broadcast | Max. 256 addresses | |
Memory Backup | Yes | |
Store Specification | ||
Mail Box (Number supported) | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes 30,000 Maximum Pages Stored | |
Advanced Box | Communication Protocol: | SMB or WebDAV |
Supported Client PC: | Windows (Windows Vista / 7 / 8 / 8.1 / 10) | |
Concurrent Connections (Max.): | SMB: 64 | |
WebDAV: 3 (Active Sessions) | ||
Advanced Box Available Disc Space | Approx. 16GB (Standard HDD) | |
Approx. 480GB (1TB HDD) | ||
Memory Media | Standard: USB Memory | |
Security Specification | ||
Authentication | Standard: | Picture Login Authentication, User Authentication, Department ID Authentication, Device and Function Level Login, Access Management System |
Optional: | My Print Anywhere secure print (Requires uniFLOW) | |
Data | Standard: | Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Hard Disk Drive Encryption (FIPS140-2 Validated), Mail Box Password Protection |
Optional: | Hard Disk Drive Mirroring, Hard Disk Drive removal, IEEE 2600.2 Common Criteria Certification. | |
Network | Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP | |
Document | Standard: | Secure Print, Force Hold Print |
Optional: | Encrypted PDF, Encrypted Secure Print, User and Device signatures, Secure Watermarks, Document Scan lock | |
Environmental Specifications | ||
Operating Environment | Temperature: 10 to 30°C | |
Humidity: 20 to 80 % RH (no condensation) | ||
Power Requirements | iR-ADV 4551: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.6A |
iR-ADV 4545: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.2A | |
iR-ADV 4535: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.2A | |
iR-ADV 4525: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 4.3A | |
Power Consumption | Maximum: | 1.5kW |
Standby: | Approx. 37W* | |
Sleep mode: | Approx. 0.9W ** | |
* Reference Value ** 0.9W sleep mode is not available in all circumstances due to certain settings. |
||
Consumables | ||
Toner Yield (Estimated Yield @6% Coverage) | NPG-73 Toner: | 42,100 pages |
Drum Yield (Estimated Yield @6% Coverage) | iR-ADV 4551: | 338,000 pages |
iR-ADV 4545: | 318,000 pages | |
iR-ADV 4535: | 280,000 pages | |
iR-ADV 4525: | 314,000 pages |
Suitable for both medium and large enterprises, the imageRUNNER ADVANCE (iR-ADV) 4500 delivers consistent and reliable performance in a compact, space-saving design. With its intelligent features and customisable options, the iR-ADV 4500 is the solution to your business needs.
Type | Monochrome Laser Multifunctional | |
Core Function | Print, Copy, Scan, Send, Store and Optional Fax | |
Processor | Canon Dual Custom Processor (Shared) | |
Control Panel | Standard: 10.1 inch TFT LCD WSVGA Colour Touch Panel | |
Memory | Standard: 3.0GB RAM | |
Hard Disk Drive | Standard: | 250GB |
Maximum: | 1TB | |
Mirroring Hard Disk Drive | Optional 250GB, 1TB | |
Interface Connection | Network | Standard: 1000Base-T / 100Base-TX / 10Base-T, Wireless LAN (IEEE 802.11 b/g/n) |
Optional: NFC, Bluetooth | ||
Others | Standard: USB 2.0 x2 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device) | |
Optional: Serial Interface, Copy Control Interface | ||
Paper Capacity (A4, 80gsm) | Standard: | 1,180 Sheets |
Maximum: | 6,330 Sheets | |
Paper Sources (A4, 80gsm) | Standard: | Two 550-sheet Paper Cassettes 80-sheet Multi-purpose tray |
Optional: | CASSETTE FEEDING UNIT-AN1: Two 550-sheet Paper Cassettes HIGH CAPACITY CASSETTE FEEDING UNIT-B1: 2,450-sheet Paper deck PAPER DECK UNIT-F1: 2,700-sheet Paper deck |
|
Maximum: | 6,330 Sheets | |
Paper Output Capacity (A4,80gsm) | Standard: | 250 sheets |
Maximum: | 3,350 sheets (With STAPLE FINISHER-Y1 / BOOKLET FINISHER-Y1) |
|
Finishing Capabilities | Standard: Collate, Group | |
With Inner Finisher Option: Offset, Collate, Group, Staple, *Hole Punch, ECO-Staple, Staple-On Demand | ||
With External Finisher Option: Offset, Collate, Group, Staple, *Hole Punch, **Saddle Stitch, , ECO-Staple, Staple-On Demand
*Require Inner Hole Puncher option **Require BOOKLET FINISHER-Y1 |
||
Supported Media Types | Cassettes (1/2): | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper |
Multi Purpose Tray | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper, *Transparency, Tracing paper, Label, Bond paper, Envelope | |
Cassette Feeding Unit-AN1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
High Capacity Cassette Feeding Unit-B1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
Paper Deck Unit-F1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
*Use only A4 transparencies made especially for multi-functional device | ||
Supported Media Sizes | Cassette 1: | Standard size: B4, A4, A4R, B5, B5R, A5R |
Custom Size: Min. 139.7 x 182mm up to 297 x 390mm | ||
Cassette 2: | Standard size: A3, B4, A4, A4R, B5, B5R, A5R, Foolscap, India Legal, F4A | |
Custom size: Min. 139.7 x 182mm up to 297 x 431.8mm | ||
CASSETTE FEEDING UNIT-AN1 (3/4): | Standard size: A3, B4, A4, A4R, B5, B5R, A5R, Foolscap, India Legal, F4A | |
Custom size: Min. 139.7 x 182mm up to 297 x 431.8mm | ||
High Capacity Cassette Feeding Unit-B1: | A4 | |
Paper Deck Unit-F1: | A4, B5 | |
Multi-Purpose Tray: | Standard size: A3, B4, A4, A4R, B5, B5R, A5, A5R, Foolscap, India Legal, F4A | |
Custom Size: Min. 98 x 148mm up to 297 x 431.8mm | ||
Supported Media Weights | CASSETTES: | 60 to 128g/m2 |
MULTI-PURPOSE TRAY: | 52 to 220g/m2 | |
DUPLEX: | 60 to 105g/m2 | |
Warm-up Time | From Power On*: | 24 seconds or Less *Time between device power-on and when the start key is enabled (Force Hold Print) |
From Deep Sleep Mode: | 10 seconds or Less | |
Quick Startup Mode: | 4 seconds or less** ** If |
|
Dimensions (W x D x H) | With SINGLE PASS DADF-A1: | 587 x 740 x 945mm |
With DADF-AV1: | 587 x 750 x 926mm | |
Installation Space (W x D) | Basic: | 889 x 1171.9mm (with SINGLE PASS DADF-A1 + Multi-purpose tray open + Cassette Drawers open)
889 x 1181.9mm (with DADF-AV1 + Multi-purpose tray open + Cassette Drawers open) |
Fully Configured: | 1,811 x 1,269.9mm (with SINGLE PASS DADF-A1 + PAPER DECK UNIT-F1 + BOOKLET FINISHER-Y1 + Cassette Drawers open) 1,811 mm x 1,279.9 mm (with DADF-AV1 + PAPER DECK UNIT-F1 + BOOKLET FINISHER-Y1 + Cassette Drawers open) |
|
Weight (Including the toner bottle) | Approx. 86.6kg (with SINGLE PASS DADF-A1) | |
Approx. 81.3kg (with DADF-AV1) | ||
Print Specification | ||
Printing Method | Monochrome laser beam printing | |
Print Speed | iR-ADV 4551 | 51ppm (A4) 25ppm (A3) |
iR-ADV 4545 | 45ppm (A4) 22ppm (A3) | |
iR-ADV 4535 | 35ppm (A4) 22ppm (A3) | |
iR-ADV 4525 | 25ppm (A4) 15ppm (A3) | |
Print Resolution | Up to 1,200 x 1,200 dpi | |
Page Description Languages | UFR II (Standard), PCL6 (Option), Adobe PS 3 (Option) | |
Double Sided Printing | Automatic (Standard) | |
Direct Print | Direct printing available from USB memory key, Advanced box, Remote UI and Web Access* Supported File Types: PDF, TIFF, JPEG, XPS *Only PDF print from websites is supported. |
|
Fonts | PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts,
Andalé Mono WT J / K / S / T* (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts** PS fonts: 136 Roman *Requires optional PCL INTERNATIONAL FONT SET-A1 **Require optional BARCODE PRINTING KIT-D1 |
|
Operating System | UFRII: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10, MAC OS X (10.6.8 or later) |
PCL: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 | |
PS: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10, MAC OS X (10.6.8 or later) | |
PPD: | MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 | |
Copy Specification | ||
Copy Speed (BW / Colour) | iR-ADV 4551 | 51ppm (A4) 25ppm (A3) |
iR-ADV 4545 | 45ppm (A4) 22ppm (A3) | |
iR-ADV 4535 | 35ppm (A4) 22ppm (A3) | |
iR-ADV 4525 | 25ppm (A4) 15ppm (A3) | |
First-Copy-Out Time* (A4) * 20ºC to 30ºC Environment |
iR-ADV 4551: |
Approx. 3.7 seconds or less |
iR-ADV 4545 / 4535: | Approx. 3.8 seconds or less | |
iR-ADV 4525: | Approx. 5.2 seconds or less | |
Copy Resolution | Reading: |
600 x 600dpi |
Printing: | Up to 1,200 x 1,200dpi | |
Multiple Copies | Up to 999 copies | |
Copy Exposure | Automatic or Manual (10 Levels) | |
Magnification | 25% - 400% (1% Increments) | |
Preset Reductions | 25%, 50%, 70%, 81%, 86% | |
Preset Enlargements | 115%, 122%, 141%, 200%, 400% | |
Scan Specification | ||
Type | Single-pass Duplexing Automatic Document Feeder or Duplexing Automatic Document Feeder | |
Document Feeder Paper Capacity | SINGLE PASS (SP) DADF-A1: | 150 Sheets (80g/m2) |
DADF-AV1: | 100 Sheets (80g/m2) | |
Document Feeder Supported Media Sizes | SP DADF-A1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6R |
DADF-AV1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6 | |
Document Feeder Supported Media Weights | SP DADF-A1: | |
Single-sided scanning: | 38 to 157g/m2 (BW) | |
64 to 157g/m2 (CL) | ||
Double-sided scanning | 50 to 157g/m2(BW) | |
64 to 157g/m2 (CL) | ||
DADF-AV1: | ||
Single-sided scanning: | 38 to 128g/m2 (BW) | |
64 to 128g/m2 (CL) | ||
Double-sided scanning | 50 to 128g/m2 (BW) | |
64 to 128g/m2 (CL) | ||
Pull Scan Spec | Colour Network ScanGear2. For both Twain and WIA
Supported OS: Windows Vista / 7 / 8 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 |
|
Scan Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | |
Platen Acceptable Originals | Platen: Sheet, Book, 3-Dimensional Objects [Up to 2kg]
Feeder size: A3, B4, A4, A4R, B5, B5R, A5, A5R |
|
Scan Speed (A4) | SP DADF-A1: | |
1-sided Scanning (BW): | 80ipm (300dpi) / 80 ipm (600dpi) | |
1-sided Scanning (Colour): | 80ipm (300dpi) / 60ipm (600dpi) | |
2-sided Scanning (BW): | 160ipm (300dpi) / 150ipm (600dpi) | |
2-sided Scanning (Colour): | 160ipm (300dpi) / 80ipm (600dpi) | |
DADF-AV1: | ||
1-sided Scanning (BW): | 70ipm (300dpi) / 51ipm (600 dpi) | |
1-sided Scanning (Colour): | 70ipm (300dpi) / 51ipm (600 dpi) | |
2-sided Scanning (BW): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
2-sided Scanning (Colour): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
Double sided scanning | 2-sided to 2-sided (Automatic) | |
Send Specification | ||
Optional / standard | Standard on all models | |
Destination | E-mail / Internet FAX (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 FAX (Optional), IP Fax (Optional) | |
Colour Mode | Automatic-Colour Select (Full Colour / Grayscale), Automatic-Colour Select (Full Colour / Black-and-White), Full colour, Grayscale, and Black-and-White | |
Address Book | LDAP (2,000) / Local (1,600) / One-touch (200) | |
Send Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | |
Communication Protocol | File: | FTP, SMB v3.0, WebDAV |
E-mail / I-Fax: | SMTP, POP3, I-Fax (Simple, Full) | |
File Format | Standard: | JPEG, TIFF, PDF / XPS (Compact), PDF (PDF / A-1b, Optimize for Web, Apply Policy |
Optional: | PDF (Trace & Smooth, Encrypted), PDF / XPS (Searchable, Digital Signature), Office Open XML (PowerPoint, Word) | |
Fax Specification | ||
Optional / Standard | Optional on all models | |
Maximum Number of Connection Lines | 4 | |
Modem Speed | Super G3: 33.6kbps / G3: 14.4kbps | |
Compression Method | MH, MR, MMR, JBIG | |
Resolution | 400 x 400dpi, 200 x 400dpi, 200 x 200dpi, 200 x 100dpi | |
Sending / Recording Size | A5 and A5R* to A3
* Sent as A4 |
|
FAX Memory | Up to 30,000 pages | |
Speed Dials | Max. 200 | |
Group Dials / Destinations | Max. 199 dials | |
Sequential Broadcast | Max. 256 addresses | |
Memory Backup | Yes | |
Store Specification | ||
Mail Box (Number supported) | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes 30,000 Maximum Pages Stored | |
Advanced Box | Communication Protocol: | SMB or WebDAV |
Supported Client PC: | Windows (Windows Vista / 7 / 8 / 8.1 / 10) | |
Concurrent Connections (Max.): | SMB: 64 | |
WebDAV: 3 (Active Sessions) | ||
Advanced Box Available Disc Space | Approx. 16GB (Standard HDD) | |
Approx. 480GB (1TB HDD) | ||
Memory Media | Standard: USB Memory | |
Security Specification | ||
Authentication | Standard: | Picture Login Authentication, User Authentication, Department ID Authentication, Device and Function Level Login, Access Management System |
Optional: | My Print Anywhere secure print (Requires uniFLOW) | |
Data | Standard: | Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Hard Disk Drive Encryption (FIPS140-2 Validated), Mail Box Password Protection |
Optional: | Hard Disk Drive Mirroring, Hard Disk Drive removal, IEEE 2600.2 Common Criteria Certification. | |
Network | Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP | |
Document | Standard: | Secure Print, Force Hold Print |
Optional: | Encrypted PDF, Encrypted Secure Print, User and Device signatures, Secure Watermarks, Document Scan lock | |
Environmental Specifications | ||
Operating Environment | Temperature: 10 to 30°C | |
Humidity: 20 to 80 % RH (no condensation) | ||
Power Requirements | iR-ADV 4551: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.6A |
iR-ADV 4545: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.2A | |
iR-ADV 4535: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.2A | |
iR-ADV 4525: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 4.3A | |
Power Consumption | Maximum: | 1.5kW |
Standby: | Approx. 37W* | |
Sleep mode: | Approx. 0.9W ** | |
* Reference Value ** 0.9W sleep mode is not available in all circumstances due to certain settings. |
||
Consumables | ||
Toner Yield (Estimated Yield @6% Coverage) | NPG-73 Toner: | 42,100 pages |
Drum Yield (Estimated Yield @6% Coverage) | iR-ADV 4551: | 338,000 pages |
iR-ADV 4545: | 318,000 pages | |
iR-ADV 4535: | 280,000 pages | |
iR-ADV 4525: | 314,000 pages |
Suitable for both medium and large enterprises, the imageRUNNER ADVANCE (iR-ADV) 4500 delivers consistent and reliable performance in a compact, space-saving design. With its intelligent features and customisable options, the iR-ADV 4500 is the solution to your business needs.
Type | Monochrome Laser Multifunctional | |
Core Function | Print, Copy, Scan, Send, Store and Optional Fax | |
Processor | Canon Dual Custom Processor (Shared) | |
Control Panel | Standard: 10.1 inch TFT LCD WSVGA Colour Touch Panel | |
Memory | Standard: 3.0GB RAM | |
Hard Disk Drive | Standard: | 250GB |
Maximum: | 1TB | |
Mirroring Hard Disk Drive | Optional 250GB, 1TB | |
Interface Connection | Network | Standard: 1000Base-T / 100Base-TX / 10Base-T, Wireless LAN (IEEE 802.11 b/g/n) |
Optional: NFC, Bluetooth | ||
Others | Standard: USB 2.0 x2 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device) | |
Optional: Serial Interface, Copy Control Interface | ||
Paper Capacity (A4, 80gsm) | Standard: | 1,180 Sheets |
Maximum: | 6,330 Sheets | |
Paper Sources (A4, 80gsm) | Standard: | Two 550-sheet Paper Cassettes 80-sheet Multi-purpose tray |
Optional: | CASSETTE FEEDING UNIT-AN1: Two 550-sheet Paper Cassettes HIGH CAPACITY CASSETTE FEEDING UNIT-B1: 2,450-sheet Paper deck PAPER DECK UNIT-F1: 2,700-sheet Paper deck |
|
Maximum: | 6,330 Sheets | |
Paper Output Capacity (A4,80gsm) | Standard: | 250 sheets |
Maximum: | 3,350 sheets (With STAPLE FINISHER-Y1 / BOOKLET FINISHER-Y1) |
|
Finishing Capabilities | Standard: Collate, Group | |
With Inner Finisher Option: Offset, Collate, Group, Staple, *Hole Punch, ECO-Staple, Staple-On Demand | ||
With External Finisher Option: Offset, Collate, Group, Staple, *Hole Punch, **Saddle Stitch, , ECO-Staple, Staple-On Demand
*Require Inner Hole Puncher option **Require BOOKLET FINISHER-Y1 |
||
Supported Media Types | Cassettes (1/2): | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper |
Multi Purpose Tray | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper, *Transparency, Tracing paper, Label, Bond paper, Envelope | |
Cassette Feeding Unit-AN1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
High Capacity Cassette Feeding Unit-B1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
Paper Deck Unit-F1: | Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper | |
*Use only A4 transparencies made especially for multi-functional device | ||
Supported Media Sizes | Cassette 1: | Standard size: B4, A4, A4R, B5, B5R, A5R |
Custom Size: Min. 139.7 x 182mm up to 297 x 390mm | ||
Cassette 2: | Standard size: A3, B4, A4, A4R, B5, B5R, A5R, Foolscap, India Legal, F4A | |
Custom size: Min. 139.7 x 182mm up to 297 x 431.8mm | ||
CASSETTE FEEDING UNIT-AN1 (3/4): | Standard size: A3, B4, A4, A4R, B5, B5R, A5R, Foolscap, India Legal, F4A | |
Custom size: Min. 139.7 x 182mm up to 297 x 431.8mm | ||
High Capacity Cassette Feeding Unit-B1: | A4 | |
Paper Deck Unit-F1: | A4, B5 | |
Multi-Purpose Tray: | Standard size: A3, B4, A4, A4R, B5, B5R, A5, A5R, Foolscap, India Legal, F4A | |
Custom Size: Min. 98 x 148mm up to 297 x 431.8mm | ||
Supported Media Weights | CASSETTES: | 60 to 128g/m2 |
MULTI-PURPOSE TRAY: | 52 to 220g/m2 | |
DUPLEX: | 60 to 105g/m2 | |
Warm-up Time | From Power On*: | 24 seconds or Less *Time between device power-on and when the start key is enabled (Force Hold Print) |
From Deep Sleep Mode: | 10 seconds or Less | |
Quick Startup Mode: | 4 seconds or less** ** If |
|
Dimensions (W x D x H) | With SINGLE PASS DADF-A1: | 587 x 740 x 945mm |
With DADF-AV1: | 587 x 750 x 926mm | |
Installation Space (W x D) | Basic: | 889 x 1171.9mm (with SINGLE PASS DADF-A1 + Multi-purpose tray open + Cassette Drawers open)
889 x 1181.9mm (with DADF-AV1 + Multi-purpose tray open + Cassette Drawers open) |
Fully Configured: | 1,811 x 1,269.9mm (with SINGLE PASS DADF-A1 + PAPER DECK UNIT-F1 + BOOKLET FINISHER-Y1 + Cassette Drawers open) 1,811 mm x 1,279.9 mm (with DADF-AV1 + PAPER DECK UNIT-F1 + BOOKLET FINISHER-Y1 + Cassette Drawers open) |
|
Weight (Including the toner bottle) | Approx. 86.6kg (with SINGLE PASS DADF-A1) | |
Approx. 81.3kg (with DADF-AV1) | ||
Print Specification | ||
Printing Method | Monochrome laser beam printing | |
Print Speed | iR-ADV 4551 | 51ppm (A4) 25ppm (A3) |
iR-ADV 4545 | 45ppm (A4) 22ppm (A3) | |
iR-ADV 4535 | 35ppm (A4) 22ppm (A3) | |
iR-ADV 4525 | 25ppm (A4) 15ppm (A3) | |
Print Resolution | Up to 1,200 x 1,200 dpi | |
Page Description Languages | UFR II (Standard), PCL6 (Option), Adobe PS 3 (Option) | |
Double Sided Printing | Automatic (Standard) | |
Direct Print | Direct printing available from USB memory key, Advanced box, Remote UI and Web Access* Supported File Types: PDF, TIFF, JPEG, XPS *Only PDF print from websites is supported. |
|
Fonts | PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts,
Andalé Mono WT J / K / S / T* (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts** PS fonts: 136 Roman *Requires optional PCL INTERNATIONAL FONT SET-A1 **Require optional BARCODE PRINTING KIT-D1 |
|
Operating System | UFRII: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10, MAC OS X (10.6.8 or later) |
PCL: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 | |
PS: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10, MAC OS X (10.6.8 or later) | |
PPD: | MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 | |
Copy Specification | ||
Copy Speed (BW / Colour) | iR-ADV 4551 | 51ppm (A4) 25ppm (A3) |
iR-ADV 4545 | 45ppm (A4) 22ppm (A3) | |
iR-ADV 4535 | 35ppm (A4) 22ppm (A3) | |
iR-ADV 4525 | 25ppm (A4) 15ppm (A3) | |
First-Copy-Out Time* (A4) * 20ºC to 30ºC Environment |
iR-ADV 4551: |
Approx. 3.7 seconds or less |
iR-ADV 4545 / 4535: | Approx. 3.8 seconds or less | |
iR-ADV 4525: | Approx. 5.2 seconds or less | |
Copy Resolution | Reading: |
600 x 600dpi |
Printing: | Up to 1,200 x 1,200dpi | |
Multiple Copies | Up to 999 copies | |
Copy Exposure | Automatic or Manual (10 Levels) | |
Magnification | 25% - 400% (1% Increments) | |
Preset Reductions | 25%, 50%, 70%, 81%, 86% | |
Preset Enlargements | 115%, 122%, 141%, 200%, 400% | |
Scan Specification | ||
Type | Single-pass Duplexing Automatic Document Feeder or Duplexing Automatic Document Feeder | |
Document Feeder Paper Capacity | SINGLE PASS (SP) DADF-A1: | 150 Sheets (80g/m2) |
DADF-AV1: | 100 Sheets (80g/m2) | |
Document Feeder Supported Media Sizes | SP DADF-A1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6R |
DADF-AV1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6 | |
Document Feeder Supported Media Weights | SP DADF-A1: | |
Single-sided scanning: | 38 to 157g/m2 (BW) | |
64 to 157g/m2 (CL) | ||
Double-sided scanning | 50 to 157g/m2(BW) | |
64 to 157g/m2 (CL) | ||
DADF-AV1: | ||
Single-sided scanning: | 38 to 128g/m2 (BW) | |
64 to 128g/m2 (CL) | ||
Double-sided scanning | 50 to 128g/m2 (BW) | |
64 to 128g/m2 (CL) | ||
Pull Scan Spec | Colour Network ScanGear2. For both Twain and WIA
Supported OS: Windows Vista / 7 / 8 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 |
|
Scan Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | |
Platen Acceptable Originals | Platen: Sheet, Book, 3-Dimensional Objects [Up to 2kg]
Feeder size: A3, B4, A4, A4R, B5, B5R, A5, A5R |
|
Scan Speed (A4) | SP DADF-A1: | |
1-sided Scanning (BW): | 80ipm (300dpi) / 80 ipm (600dpi) | |
1-sided Scanning (Colour): | 80ipm (300dpi) / 60ipm (600dpi) | |
2-sided Scanning (BW): | 160ipm (300dpi) / 150ipm (600dpi) | |
2-sided Scanning (Colour): | 160ipm (300dpi) / 80ipm (600dpi) | |
DADF-AV1: | ||
1-sided Scanning (BW): | 70ipm (300dpi) / 51ipm (600 dpi) | |
1-sided Scanning (Colour): | 70ipm (300dpi) / 51ipm (600 dpi) | |
2-sided Scanning (BW): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
2-sided Scanning (Colour): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
Double sided scanning | 2-sided to 2-sided (Automatic) | |
Send Specification | ||
Optional / standard | Standard on all models | |
Destination | E-mail / Internet FAX (SMTP), SMB, FTP, WebDAV, Mail Box, Super G3 FAX (Optional), IP Fax (Optional) | |
Colour Mode | Automatic-Colour Select (Full Colour / Grayscale), Automatic-Colour Select (Full Colour / Black-and-White), Full colour, Grayscale, and Black-and-White | |
Address Book | LDAP (2,000) / Local (1,600) / One-touch (200) | |
Send Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | |
Communication Protocol | File: | FTP, SMB v3.0, WebDAV |
E-mail / I-Fax: | SMTP, POP3, I-Fax (Simple, Full) | |
File Format | Standard: | JPEG, TIFF, PDF / XPS (Compact), PDF (PDF / A-1b, Optimize for Web, Apply Policy |
Optional: | PDF (Trace & Smooth, Encrypted), PDF / XPS (Searchable, Digital Signature), Office Open XML (PowerPoint, Word) | |
Fax Specification | ||
Optional / Standard | Optional on all models | |
Maximum Number of Connection Lines | 4 | |
Modem Speed | Super G3: 33.6kbps / G3: 14.4kbps | |
Compression Method | MH, MR, MMR, JBIG | |
Resolution | 400 x 400dpi, 200 x 400dpi, 200 x 200dpi, 200 x 100dpi | |
Sending / Recording Size | A5 and A5R* to A3
* Sent as A4 |
|
FAX Memory | Up to 30,000 pages | |
Speed Dials | Max. 200 | |
Group Dials / Destinations | Max. 199 dials | |
Sequential Broadcast | Max. 256 addresses | |
Memory Backup | Yes | |
Store Specification | ||
Mail Box (Number supported) | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes 30,000 Maximum Pages Stored | |
Advanced Box | Communication Protocol: | SMB or WebDAV |
Supported Client PC: | Windows (Windows Vista / 7 / 8 / 8.1 / 10) | |
Concurrent Connections (Max.): | SMB: 64 | |
WebDAV: 3 (Active Sessions) | ||
Advanced Box Available Disc Space | Approx. 16GB (Standard HDD) | |
Approx. 480GB (1TB HDD) | ||
Memory Media | Standard: USB Memory | |
Security Specification | ||
Authentication | Standard: | Picture Login Authentication, User Authentication, Department ID Authentication, Device and Function Level Login, Access Management System |
Optional: | My Print Anywhere secure print (Requires uniFLOW) | |
Data | Standard: | Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Hard Disk Drive Encryption (FIPS140-2 Validated), Mail Box Password Protection |
Optional: | Hard Disk Drive Mirroring, Hard Disk Drive removal, IEEE 2600.2 Common Criteria Certification. | |
Network | Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP | |
Document | Standard: | Secure Print, Force Hold Print |
Optional: | Encrypted PDF, Encrypted Secure Print, User and Device signatures, Secure Watermarks, Document Scan lock | |
Environmental Specifications | ||
Operating Environment | Temperature: 10 to 30°C | |
Humidity: 20 to 80 % RH (no condensation) | ||
Power Requirements | iR-ADV 4551: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.6A |
iR-ADV 4545: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.2A | |
iR-ADV 4535: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 5.2A | |
iR-ADV 4525: | 220 - 240V (±10 %), 50 / 60Hz (±2Hz) 4.3A | |
Power Consumption | Maximum: | 1.5kW |
Standby: | Approx. 37W* | |
Sleep mode: | Approx. 0.9W ** | |
* Reference Value ** 0.9W sleep mode is not available in all circumstances due to certain settings. |
||
Consumables | ||
Toner Yield (Estimated Yield @6% Coverage) | NPG-73 Toner: | 42,100 pages |
Drum Yield (Estimated Yield @6% Coverage) | iR-ADV 4551: | 338,000 pages |
iR-ADV 4545: | 318,000 pages | |
iR-ADV 4535: | 280,000 pages | |
iR-ADV 4525: | 314,000 pages |
Designed with simplicity in mind, the imageRUNNER C3020 serves to provide greater work productivity and security to users' daily workflow by making operations an ease. With V² colour technology, standard Wi-Fi and Direct Access Point, enjoy quality colour printouts with seamless connection.
Main Unit | ||
Machine Type | Colour Laser Multifunctional | |
Core functions | Print, Copy, Scan, Send, Store and Optional Fax | |
Processor | Canon Dual Custom Processor (Shared) | |
Control Panel | 5 inch TFT LCD WVGA Colour Touch panel | |
Memory | Standard: 2.0GB RAM | |
Interface Connection | NETWORK | Standard: 1000Base-T / 100Base-TX / 10Base-T, Wireless LAN (IEEE 802.11 b/g/n); |
Optional: NFC | ||
OTHERS | Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1; | |
Optional: Copy Control Interface | ||
Paper Capacity (A4, 80/m²) | Standard: | 1,200 Sheets |
Maximum: | 2,300 Sheets | |
Paper Source (A4, 80/m²) | Standard: | Two 550-sheet paper cassettes 100-sheets Multi Purpose Tray |
Optional: | Dual 550-sheet paper cassettes (CASSETTE FEEDING UNIT-AP1) | |
Maximum: | 2,300 Sheets | |
Paper output capacity (A4, 80/m²) | Standard: | 250 Sheets |
With Inner Finisher: | 600 sheets *INNER FINISHER-K1 | |
Finishing capabilities | Standard: | Collate, Group |
With Inner Finisher: | Collate, Group, Offset, Staple, Staple-Free Staple, Staple-on-Demand | |
Supported media sizes | Cassette 1: | Standard size: A4, B5, A5R |
Envelopes: ISO-C5 | ||
Custom Size: 139.7 x 182mm to 297 x 215.9mm | ||
Cassette 2: | Standard size: A3, B4, A4, B5, A4R, A5R | |
Envelopes: No.10 (COM10), Monarch, DL | ||
Custom Size: 139.7 x 182mm to 304.8 x 457.2mm | ||
Cassete 3/4 (CASSETTE FEEDING UNIT-AP1): | Standard size: A3, B4, A4, A4R, B5R, B5, A5R | |
Custom Size: 139.7 x 182mm to 304.8 x 457.2mm | ||
Multi-purpose tray: | Standard size: A3, B4, A4, A4R, B5R, B5, A5, A5R, SRA3 | |
Custom size: 98.4 x 139.7mm to 320 x 457.2mm | ||
Envelopes: No.10 (COM10), Monarch, ISO-C5, DL | ||
Supported Media Weights | Cassette 1,2: | 52 to 220g/m² |
Cassette Feeding Unit: | 52 to 220g/m² | |
Multi-purpose tray: | Coated paper: 52 to 256g/m² | |
Heavy Paper: 52 to 300g/m² | ||
Duplex: | 52 to 220g/m² | |
Warm-up Time | From Power On: | 30 Seconds or Less |
From Sleep Mode: | 10 Seconds or Less | |
Dimensions (W x D x H) | DADF-AV1: | 565 x 664 x 880mm |
PLATEN COVER TYPE W: | 565 x 635 x 777mm | |
Installation Space(W x D) | Basic: | 978 x 1,117mm (when attach with DADF-AV1 + Multi-purpose tray extension extended + Cassette open) 978 x 1,088mm (imageRUNNER C3020 + Multi-purpose tray extension extended + Cassette open) |
Fully Configured: | 1,110 x 1,117mm ?when attach with imageRUNNER C3020 + INNER FINISHER-K1 + Multi-purpose tray extension extended + Cassette open? | |
Weight | Approx. 69.8kg including toner (when attach with DADF-AV1) | |
Toner (Estimated Yield @ 5% Coverage) | Black: 36,000 Colour: 19,000 |
|
Drum Yield | 54,000 | |
Print Specifications | ||
Printing method | Colour Laser Beam Printing | |
Print Speed (BW/CL) | 20ppm (A4), 15ppm (A3) | |
Print Resolution | 600 x 600dpi, 1200 x 1200dpi | |
Page description languages | UFR II ?Standard?, PCL 6, Adobe PS3 (Option) | |
Double Sided Printing | Automatic (Standard) | |
Direct Print | Direct printing available from USB memory key Supported file types: TIFF, JPEG, PDF and XPS. |
|
Fonts | PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Barcode fonts* PS fonts: 136 Roman *Require optional BARCODE PRINTING KIT-D1 |
|
Operating System | UFRII: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7.5 or later), Linux |
PCL: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016 | |
PS: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7.5 or later) | |
PPD: | MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista / Windows 7 / Windows 8 / Windows10 | |
Copy Specifications | ||
Copy Speed (BW/CL) | 20ppm (A4), 15ppm (A3) | |
First-Copy-Out Time (BW/CL) | Approx. 5.9 / 8.2 seconds or less | |
Copy resolution | Reading: | 600 x 600dpi |
Multiple Copies | Up to 999 copies | |
Copy Exposure | Automatic or Manual (11 Levels) | |
Magnification | 25 - 400% (1% Increments) | |
Scan Specifications | ||
Type | Colour Platen and Duplexing Automatic Document Feeder | |
Supported media size/s | DADF-AV1: | A3, B4, A4R, A4, B5R, B5, A5R, A5, B6 |
Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows Vista / 7 / 8 / 8.1 / 10 |
|
Scan Resolution | 300 x 300dpi, 600 x 600dpi | |
Scan Method | Send, Scan to USB, Pull scanning | |
Document Feeder Paper Capacity | DADF-AV1: | 100 Sheets (80g/m²) |
Double sided scanning | 2-sided to 2-sided (Automatic) | |
Send Specifications | ||
Destination | E-mail / Internet FAX (SMTP), SMB, FTP, Super G3 FAX(Optional) | |
Colour Mode | Auto Colour Select (Full Colour, Grayscale), Auto Colour Select (Full Colour/ Black-and-White) Full Colour, Grayscale, and Black-and-White |
|
Address Book | LDAP (5) / Local (300) / One-touch (281) | |
Send resolution | 300 x 300dpi | |
Communication protocol | File: FTP, SMB v3.0 | |
E-mail / I-Fax: SMTP, POP3, I-Fax (Simple) | ||
File Format | Standard: TIFF, JPEG, PDF(Compact, Searchable) | |
Optional: PDF(Encrypted, Digital Signature) | ||
Fax Specifications | ||
Optional / Standard | Optional on all models | |
Maximum Number of Connection Lines | 1 | |
Modem Speed | Super G3: 33.6kbps G3: 14.4kbps |
|
Compression Method | MH, MR, MMR, JBIG | |
Resolution | 400 x 400dpi, 200 x 400dpi, 200 x 200dpi, 200 x 100dpi | |
Sending / Recording Size | A5* and A5R* to A3 *Sent as A4 |
|
FAX memory | Up to 512 pages | |
Speed dials | Max. 281 | |
Group dials | Max. 299 dials | |
Security Specifications | ||
Authentication | Standard: Department ID Authentication, uniFLOW connectivity | |
Environmental Specifications | ||
Operating Environment | Temperature: | 10 to 30°C (50 to 86°F) |
Humidity: | 20 to 80% RH (no condensation) | |
Power source | 220 - 240V (±10%), 50 / 60Hz (±2Hz), 4.0 Amp | |
Power consumption | Maximum: | Approx. 1.5kW |
Standby: | Approx. 33.6W* * Reference Value |
|
Sleep mode: | Approx. 2W (Wireless LAN power save mode:OFF), 1W (Wireless LAN power save mode:ON) |
Designed with simplicity in mind, the imageRUNNER C3020 serves to provide greater work productivity and security to users' daily workflow by making operations an ease. With V² colour technology, standard Wi-Fi and Direct Access Point, enjoy quality colour printouts with seamless connection.
Main Unit | ||
Machine Type | Colour Laser Multifunctional | |
Core functions | Print, Copy, Scan, Send, Store and Optional Fax | |
Processor | Canon Dual Custom Processor (Shared) | |
Control Panel | 5 inch TFT LCD WVGA Colour Touch panel | |
Memory | Standard: 2.0GB RAM | |
Interface Connection | NETWORK | Standard: 1000Base-T / 100Base-TX / 10Base-T, Wireless LAN (IEEE 802.11 b/g/n); |
Optional: NFC | ||
OTHERS | Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1; | |
Optional: Copy Control Interface | ||
Paper Capacity (A4, 80/m²) | Standard: | 1,200 Sheets |
Maximum: | 2,300 Sheets | |
Paper Source (A4, 80/m²) | Standard: | Two 550-sheet paper cassettes 100-sheets Multi Purpose Tray |
Optional: | Dual 550-sheet paper cassettes (CASSETTE FEEDING UNIT-AP1) | |
Maximum: | 2,300 Sheets | |
Paper output capacity (A4, 80/m²) | Standard: | 250 Sheets |
With Inner Finisher: | 600 sheets *INNER FINISHER-K1 | |
Finishing capabilities | Standard: | Collate, Group |
With Inner Finisher: | Collate, Group, Offset, Staple, Staple-Free Staple, Staple-on-Demand | |
Supported media sizes | Cassette 1: | Standard size: A4, B5, A5R |
Envelopes: ISO-C5 | ||
Custom Size: 139.7 x 182mm to 297 x 215.9mm | ||
Cassette 2: | Standard size: A3, B4, A4, B5, A4R, A5R | |
Envelopes: No.10 (COM10), Monarch, DL | ||
Custom Size: 139.7 x 182mm to 304.8 x 457.2mm | ||
Cassete 3/4 (CASSETTE FEEDING UNIT-AP1): | Standard size: A3, B4, A4, A4R, B5R, B5, A5R | |
Custom Size: 139.7 x 182mm to 304.8 x 457.2mm | ||
Multi-purpose tray: | Standard size: A3, B4, A4, A4R, B5R, B5, A5, A5R, SRA3 | |
Custom size: 98.4 x 139.7mm to 320 x 457.2mm | ||
Envelopes: No.10 (COM10), Monarch, ISO-C5, DL | ||
Supported Media Weights | Cassette 1,2: | 52 to 220g/m² |
Cassette Feeding Unit: | 52 to 220g/m² | |
Multi-purpose tray: | Coated paper: 52 to 256g/m² | |
Heavy Paper: 52 to 300g/m² | ||
Duplex: | 52 to 220g/m² | |
Warm-up Time | From Power On: | 30 Seconds or Less |
From Sleep Mode: | 10 Seconds or Less | |
Dimensions (W x D x H) | DADF-AV1: | 565 x 664 x 880mm |
PLATEN COVER TYPE W: | 565 x 635 x 777mm | |
Installation Space(W x D) | Basic: | 978 x 1,117mm (when attach with DADF-AV1 + Multi-purpose tray extension extended + Cassette open) 978 x 1,088mm (imageRUNNER C3020 + Multi-purpose tray extension extended + Cassette open) |
Fully Configured: | 1,110 x 1,117mm ?when attach with imageRUNNER C3020 + INNER FINISHER-K1 + Multi-purpose tray extension extended + Cassette open? | |
Weight | Approx. 69.8kg including toner (when attach with DADF-AV1) | |
Toner (Estimated Yield @ 5% Coverage) | Black: 36,000 Colour: 19,000 |
|
Drum Yield | 54,000 | |
Print Specifications | ||
Printing method | Colour Laser Beam Printing | |
Print Speed (BW/CL) | 20ppm (A4), 15ppm (A3) | |
Print Resolution | 600 x 600dpi, 1200 x 1200dpi | |
Page description languages | UFR II ?Standard?, PCL 6, Adobe PS3 (Option) | |
Double Sided Printing | Automatic (Standard) | |
Direct Print | Direct printing available from USB memory key Supported file types: TIFF, JPEG, PDF and XPS. |
|
Fonts | PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Barcode fonts* PS fonts: 136 Roman *Require optional BARCODE PRINTING KIT-D1 |
|
Operating System | UFRII: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7.5 or later), Linux |
PCL: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016 | |
PS: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7.5 or later) | |
PPD: | MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista / Windows 7 / Windows 8 / Windows10 | |
Copy Specifications | ||
Copy Speed (BW/CL) | 20ppm (A4), 15ppm (A3) | |
First-Copy-Out Time (BW/CL) | Approx. 5.9 / 8.2 seconds or less | |
Copy resolution | Reading: | 600 x 600dpi |
Multiple Copies | Up to 999 copies | |
Copy Exposure | Automatic or Manual (11 Levels) | |
Magnification | 25 - 400% (1% Increments) | |
Scan Specifications | ||
Type | Colour Platen and Duplexing Automatic Document Feeder | |
Supported media size/s | DADF-AV1: | A3, B4, A4R, A4, B5R, B5, A5R, A5, B6 |
Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows Vista / 7 / 8 / 8.1 / 10 |
|
Scan Resolution | 300 x 300dpi, 600 x 600dpi | |
Scan Method | Send, Scan to USB, Pull scanning | |
Document Feeder Paper Capacity | DADF-AV1: | 100 Sheets (80g/m²) |
Double sided scanning | 2-sided to 2-sided (Automatic) | |
Send Specifications | ||
Destination | E-mail / Internet FAX (SMTP), SMB, FTP, Super G3 FAX(Optional) | |
Colour Mode | Auto Colour Select (Full Colour, Grayscale), Auto Colour Select (Full Colour/ Black-and-White) Full Colour, Grayscale, and Black-and-White |
|
Address Book | LDAP (5) / Local (300) / One-touch (281) | |
Send resolution | 300 x 300dpi | |
Communication protocol | File: FTP, SMB v3.0 | |
E-mail / I-Fax: SMTP, POP3, I-Fax (Simple) | ||
File Format | Standard: TIFF, JPEG, PDF(Compact, Searchable) | |
Optional: PDF(Encrypted, Digital Signature) | ||
Fax Specifications | ||
Optional / Standard | Optional on all models | |
Maximum Number of Connection Lines | 1 | |
Modem Speed | Super G3: 33.6kbps G3: 14.4kbps |
|
Compression Method | MH, MR, MMR, JBIG | |
Resolution | 400 x 400dpi, 200 x 400dpi, 200 x 200dpi, 200 x 100dpi | |
Sending / Recording Size | A5* and A5R* to A3 *Sent as A4 |
|
FAX memory | Up to 512 pages | |
Speed dials | Max. 281 | |
Group dials | Max. 299 dials | |
Security Specifications | ||
Authentication | Standard: Department ID Authentication, uniFLOW connectivity | |
Environmental Specifications | ||
Operating Environment | Temperature: | 10 to 30°C (50 to 86°F) |
Humidity: | 20 to 80% RH (no condensation) | |
Power source | 220 - 240V (±10%), 50 / 60Hz (±2Hz), 4.0 Amp | |
Power consumption | Maximum: | Approx. 1.5kW |
Standby: | Approx. 33.6W* * Reference Value |
|
Sleep mode: | Approx. 2W (Wireless LAN power save mode:OFF), 1W (Wireless LAN power save mode:ON) |
